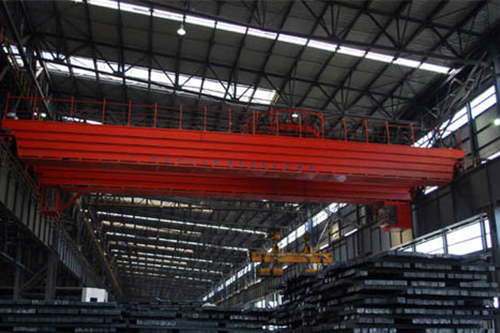

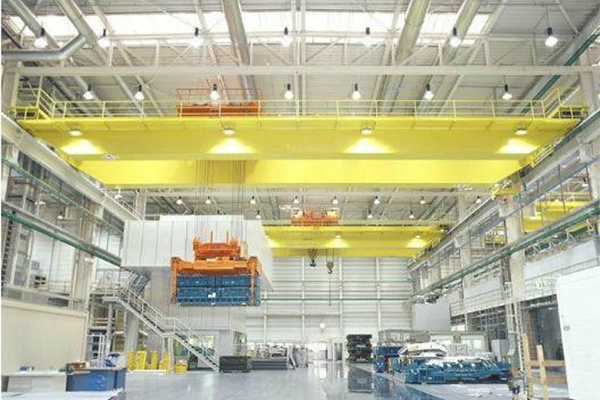

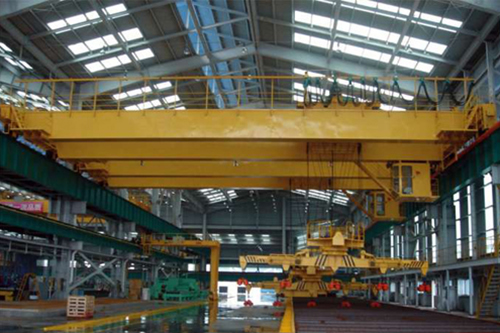

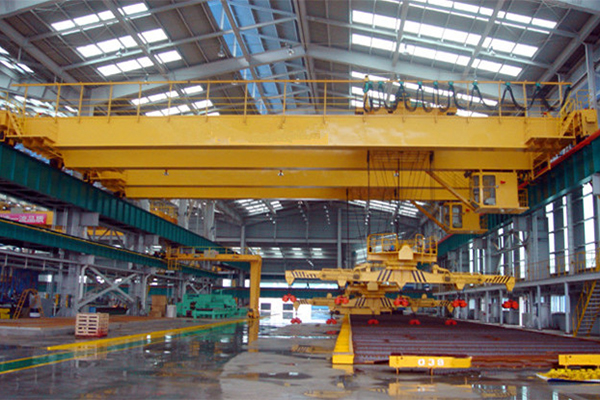

Bridge Crane with Carrier Beam

, CAP Model
Our CAP model bridge crane with carrier beam comes in two options. One is that the carrier beam is parallel with the bridge girder and another is that the carrier beam is vertical to the girder. No matter what type it is, the industrial crane comes with the same span of up to 16m and the same lifting capacities of 5t, 7.5t, 10t, 16t and 25t. The difference is that the former overhead lifting system offers the maximum lifting height of 12.9m while the latter 12.5m.
Specifications of the Bridge Crane
Lifting capacity T (5+5) - (25+25)
Span m 10.5~31.5 (Extendable)
Lifting height m 6-16 (Extendable)
Control methods Control in the air Cabin Driver cabin with broad vision, toughened glass, ergonomic seat and easy operation
Control on ground Remote controller/pendant Easy operation, without having to climb; professional driver is unnecessary
Power supply AC 3-Phase, AC, 380V, 50HZ
Classification A5-A6
Hoisting mechanism Hoist type drive Modular design of motor, reducer, brake, coupling and wire rope reel, compact and safe.
Main electric parts Schneider or Siemens (Optional)
Overload protection device Rotary cam, 4-step adjustable, auto reset, height adjustable, precise phase-sequence control
Crane travel limit switch PU, anti-collision, IR sensor limit protection, etc.
Steel structure part Designed and manufactured independently; cutting-edge technology and manufacturing strength
Motor Best-in-class brand motor in China (optional)
Electrical control system Variable frequency control, stator voltage control, PLC with human-machine interface
Reducer Best brand in China or SEW, Flanders, etc.
Wire rope Wire rope with high strength fiber core or steel core
Brake State of the art brand in China or optional
Hook Hardened and tempered steel: 34CrMoV; T-class hook is made of alloy steel 34CrMoV4
Wire rope reel Welded reel, rolled from steel plates; light weight, simple structure and high intensity
Wheel and machining parts Designed and made by ourselves, bringing you peace in mind
Carrier beam Rotary, telescoping, clamping and more types; Best brand in China; Great overseas brand is optional
