Double Girder Manual Bridge Crane

, SQ Model

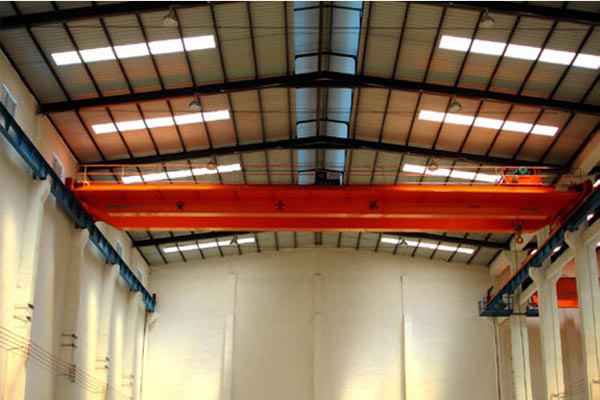

Our SQ model manual bridge crane is a double girder crane manufactured according to customer's requirements. With a span of 10-17m and lifting height of 10-16m, the overhead lifting system can handle materials weighing 5-20t. Thanks to manual control method, it is easy to operate. This workstation crane comes with relatively low purchase cost, and it is ideal for the power supply unavailable warehouses, workshops or equipment maintenance places where carrying capacity, efficiency and speed are not of high importance.
Technical Parameters of the Manual Bridge Crane
Lifting capacity Span Lifting height Steel rail width Main dimensions Hook limit size Traction force End truck wheel pressure Total weight
W B H A Wc K h L1 L2 Lifting Trolley Crane
≤
t m m mm mm kg t t
5 10 40 2200 2800 950 160 1300 1300 680 980 1020 37 10 30 3.35 3.45
11 3.42 3.64
12 3.52 4.04
13 3.63 4.25
14 3.83 4.78
15 3.86 5.00
16 4.01 5.64
17 4.10 5.89
10 10 60 53 16 35 5.67 3.79
11 5.76 4.00
12 5.97 4.60
13 6.07 4.85
14 6.23 5.30
15 6.31 5.57
16 6.50 6.25
17 6.59 6.54
16 10 60 2600 2300 1170 170 1500 1600 800 1000 1260 58 25 25 8.8 5.12
11 8.9 5.48
12 9.12 5.98
13 9.34 6.28
14 9.62 7.21
15 9.76 7.56
16 9.96 8.21
17 10.10 8.57
20 10 60 64 29 30 10.3 5.45
11 11.13 5.75
12 11.34 6.30
13 11.52 6.63
14 11.78 7.47
15 11.94 7.85
16 12.23 8.74
17 12.43 9.55
