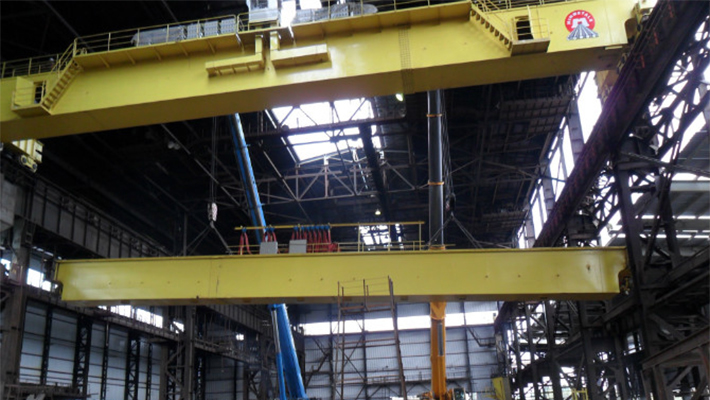

Electromagnetic Bridge Crane
Not only is the electromagnetic bridge crane suitable for outdoor or indoor handling of ferrous metals such as steel ingots, sectional steels and pig irons in metallurgical plants, but it can also be used in machine plants and warehouses to lift and transport scrap irons or steels. It is a workstation bridge crane and reaches A6 duty. Crane weight includes the dead weight of electromagnetic chunk.

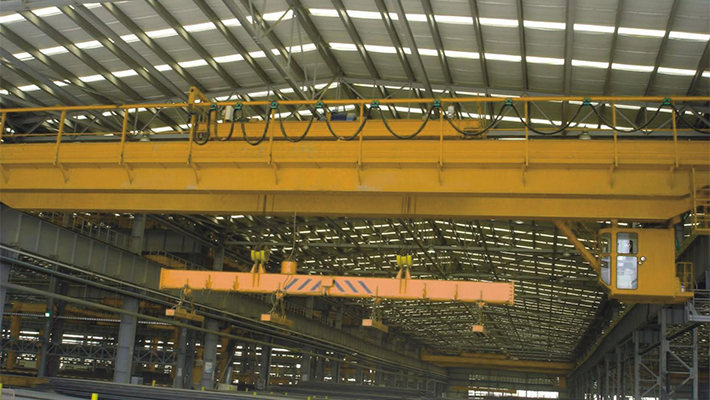

The electromagnetic overhead traveling crane consists of box girder, end truck, trolley hoist, electrical equipment and electromagnetic chunk. It only applies cabin control method. That is to say, all mechanisms of this bridge crane for steel industry are controlled in the driver cabin. In addition, we offer rain proof equipment for outdoor applications.
If you are browsing online for a perfect ferrous material handling solution, Zhonggong electromagnetic bridge crane is an ideal choice for you. Feel free to contact us anytime to know more about the lifting equipment.
Technical Parameters of the Electromagnetic Bridge Crane| Item | Unit | Parameters | ||||||||||||||||||||||||
| Lifting capacity | t | 5 | 10 | 16 | ||||||||||||||||||||||
| Span | m | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |
| Max. lifting height | m | 16 | 16 | 16 | ||||||||||||||||||||||
| Speed | Electromagnetic chunk hoisting | m/min | 19.9 | 19.4 | 16.4 | |||||||||||||||||||||
| Trolley traveling | 39.5 | 43.8 | 45 | |||||||||||||||||||||||
| Crane traveling | 115.6 | 116.8 | 115.6 | 116.8 | 112.5 | 101.4 | ||||||||||||||||||||
| Motor | Electromagnetic chunk hoisting | type/ kw | YZR200L-6/1.5 | YZR250M1-6/2.2 | YZR132M2-6/45 | |||||||||||||||||||||
| Trolley traveling | YZR112M-6/1.5 | YZR132M1-6/2.2 | YZR132M1-6/2× 11 | |||||||||||||||||||||||
| Crane traveling | YZR160M1-6/2× 5.5 | YZR160M2-6/2× 5.5 | YZR160M1-6/2× 5.5 | YZR160M2-6/2× 7.5 | YZR160M2-6/2× 7.5 | YZR160L-6/2× 11 | ||||||||||||||||||||
| Main dimension | B | 5390 | 5490 | 6100 | 6040 | 6130 | 6330 | 6235 | 6835 | |||||||||||||||||
| Ba | 3600 | 3660 | 5000 | 4250 | 4200 | 5000 | 4400 | 5000 | ||||||||||||||||||
| Bx | 1100 | 1500 1700 | 1700 | |||||||||||||||||||||||
| b | 230 | 260 | ||||||||||||||||||||||||
| Lx | 1400 | 1500 | 2000 | |||||||||||||||||||||||
| H | 1764 | 2028 | 2026 | 2076 | 2095 | 2097 | 2187 | |||||||||||||||||||
| H1 | 2526 | 2546 | 2756 | 2906 | 3056 | 3206 | 3356 | 2528 | 2548 | 2598 | 2758 | 2908 | 3008 | 3158 | 3308 | 2570 | 2572 | 2552 | 2622 | 2770 | 2920 | 3070 | 3220 | |||
| H2 | 735 | 790 | 890 | |||||||||||||||||||||||
| S1 | 1250 | 1500 | 1900 | |||||||||||||||||||||||
| S2 | 1500 | |||||||||||||||||||||||||
| F | 122 | 126 | 226 | 376 | 526 | 676 | 826 | 976 | 122 | 128 | 228 | 378 | 528 | 626 | 778 | 928 | 180 | 182 | 182 | 242 | 390 | 540 | 690 | 840 | |||
| h | 850 | 720 | 700 | ||||||||||||||||||||||||
| Weight | Trolley | t | 2.496 | 4.662 | 5.55 | ||||||||||||||||||||||
| Total weight | 13.64 | 15.45 | 17.44 | 19.96 | 22.34 | 26.64 | 29.84 | 32.84 | 19.5 | 21.4 | 24.2 | 25.9 | 28.7 | 33 | 36.3 | 39.2 | 20.6 | 22.5 | 25.8 | 29.1 | 31.8 | 35.9 | 39.4 | 42.3 | |||
| Max. wheel pressure | KN | 72 | 79 | 87 | 94 | 104 | 114 | 122 | 134 | 115 | 122 | 129 | 138 | 145 | 157 | 164 | 173 | 143 | 153 | 162 | 173 | 184 | 194 | 204 | 213 | ||
| Electromagnetic chunk | Model | MW1-6 | MW1-16 | MW1-16 | MW1-16 | ||||||||||||||||||||||
| Suction capacity | T | 4.54 | 3.33 | 8.33 | 14.33 | ||||||||||||||||||||||
| Dead weight | 0.46 | 1.67 | 1.67 | 1.67 | |||||||||||||||||||||||
| Diameter | mm | 776 | 1180 | 1180 | 1180 | ||||||||||||||||||||||
| Steel track | d | 38KG /m | 43KG /m | 43KG /m | |||||||||||||||||||||||
| Power supply | 3-phase A,C 50HZ 380V | ||||||||||||||||||||||||||
