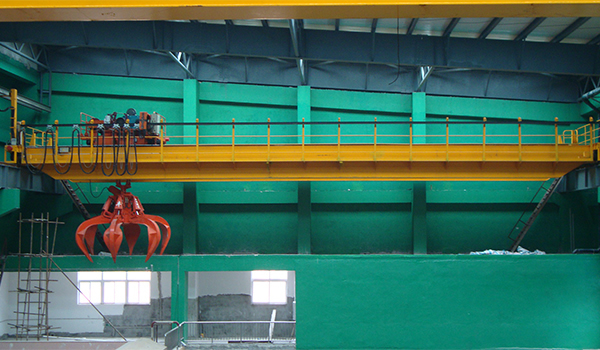

Waste Handling Crane with Grab

Waste handling crane with grab is the key equipment of waste feeding system in modern city's incineration power plants. Located above waste storage pit, the waste handling machinery is mainly used for waste feeding, moving, stirring, fetching, weighing and other operations. Zhonggong is a bucket crane expert, and our waste handling cranes can carry out strict lifting and transportation of wastes, ensuring normal operation for incineration plants. They come in manual, semi automatic and fully automatic controls, and achieve a 1600t/h production capacity.

The crane for waste management can automatically complete a series processes including waste grabbing, repeated charging, repeated shifting, parking, etc. It also features excellent anti-swing performance, real-time dynamic measurement, grab condition monitoring, automatic fault diagnosis and warning functions. In addition to waste handling, the industrial crane can also conduct slow but continuous waste feeding to fluidized bed combustion boiler. That is to say, grab opening of the waste handling crane and emptying time can be set according to actual demands so as to avoid waste stacking at the feeding port.

Technical Parameters of the Waste Handling Crane
Productivity ( t/d) 450~600 600~800 800~1000 1000~1200 1200~1500 1600
Lifting capacity ( t ) 5 6.3 8 10 11 12.5 16
Grab bucket Capacity ( m³ ) 2~2.5 3.2~4.2 4.2~5 5~6 6~6.3 6.3~8 10~12
Dead weight ( t ) 2.03~2.21 2.91~3.3 3.3 3.3~4.9 4.78~4.9 4.78~5.8 7.05~9.4
Duty A6~A7 A6~A7 A7 A7~A8 A7~A8 A7~A8
Span ( m ) 18 22.5 22.5 22.5 22.5 28.5
Speed (m/min) Hoisting 35 40 45 45 45 45 45
Trolley travel 40 40 45 45 50 50 50
Crane travel 50 50 50 60 60 65 65
Total power ( KW) 35.9 53.2 74 105 106.5 130.5 152.5
Max. wheel pressure ( KN) 90 110 140 160 170 190 226
Service cable track model 112.6 114 116 116 120a 120a 120a
Crane rail model P24 P38 P43 P43 P50 QU80 QU80

Note:
1. Lifting capacity includes grab dead weight of grab whilst crane's total weight does not include grab dead weight;
2. Total power in the table is the power of travel mechanism, not including the power of grab control system.
