Level Luffing Crane

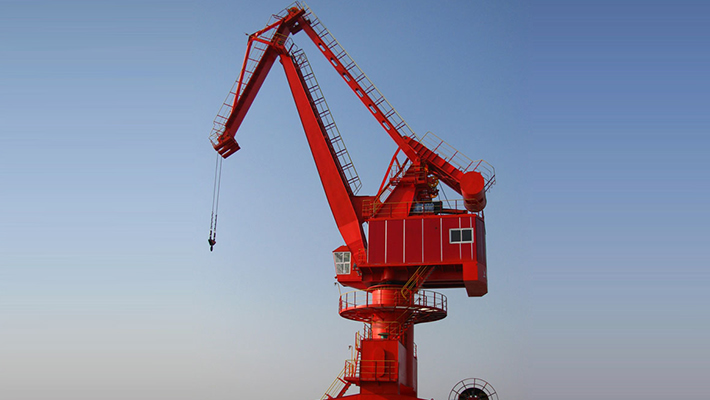

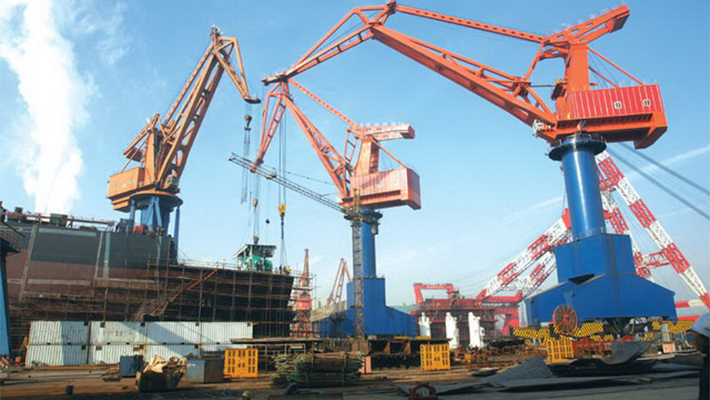

Level luffing crane is a commonly used portal crane. It is widely used in ports, shipside, stations and storage yards, providing extremely high material handling efficiency. Nowdays, it has been an indispensable port crane or shipyard crane, characterized by compact structure, high efficiency, great stability, comfortable operation, safety and reliability, easy maintenance and striking appearance.
The level luffing crane is especially suitable for use in general purpose ports where it serves as highly popular container handling crane, ensuring low cost of investment but amazing efficiency in handling containers, sundries and bulk materials.
Zhonggong offers 5 types of level luffing cranes which come with hooks and grab buckets. They offer various lifting capacities according to the operation demands.

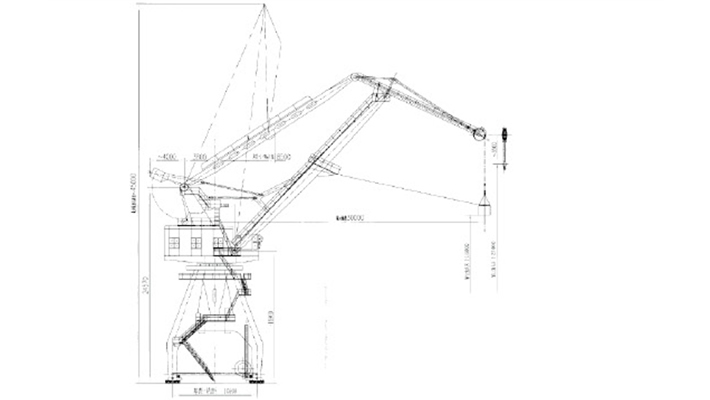

| Specification | 1020 | ||
| Lifting capacity | t | 10 | |
| Classification | A7 | ||
| Lifting height | Below base level | m | Grab bucket: 15 Hook: 25 |
| Above base level | m | Grab bucket: 33 | |
| Radius | Max. | m | 30 |
| Min. | m | 8.5 | |
| Hoisting mechanism | Classification | M7 | |
| Speed | m/min | 60 | |
| Luffing mechanism | Classification | M6 | |
| Speed | m/min | 52 | |
| Slewing mechanism | Classification | M6 | |
| Speed | m/min | 1.51 | |
| Traveling mechanism | Classification | M4 | |
| Speed | m/min | 27 | |
| Power supply | 3-Phase AC, 50Hz, 380V | ||
| Track gauge/wheel base | m | 10.5/10.5 | |
| Max. slewing radius | m | 30 | |
| Tail slewing radius | m | -7.8 | |
| Max. wind pressure in service | N/m | 250 | |
| Max. wind pressure out of service | N/m | 1000 | |
| Max. wheel pressure in service | N/m | 220 | |
| Steel track recommended | P50 | ||
| Installed capacity | kw | 350 | |
| Specification | 1623 | ||
| Lifting capacity | t | Grab bucket: 16 Hook: 16/25 |
|

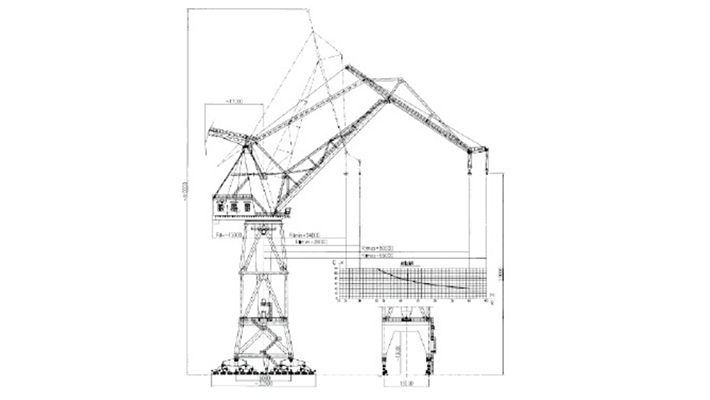

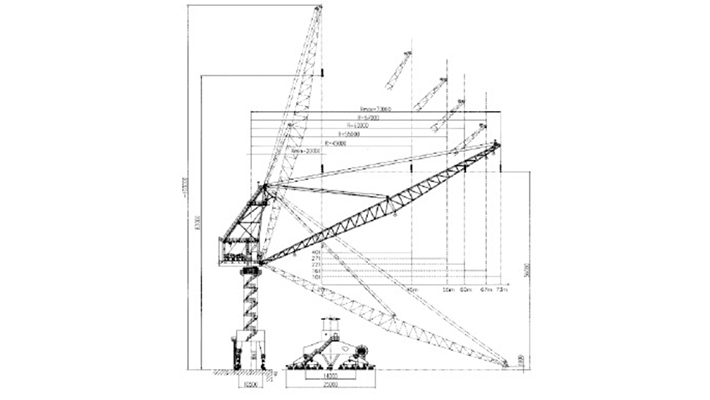

| Classification | A7 | ||
| Lifting height | Below base level | m | Grab bucket: 16 Hook: 25 |
| Above base level | m | 16 | |
| Radius | Max. | m | Grab bucket: 33 |
| Min. | m | 9.5 | |
| Hoisting mechanism | Classification | M7 | |
| Hoisting speed | m/min | 50 | |
| Luffing mechanism | Classification | M6 | |
| Luffing speed | m/min | 50 | |
| Slewing mechanism | Classification | M6 | |
| Slewing speed | m/min | 1.51 | |
| Traveling mechanism | Classification | M4 | |
| Traveling speed | m/min | 25 | |
| Power supply | 3-Phase AC, 50Hz, 380V | ||
| Track gauge/wheel base | m | 10.5/10.5 | |
| Max. slewing radius | m | 33 | |
| Tail slewing radius | m | -8.5 | |
| Max. wind pressure in service | Kn | 250 | |
| Max. wind pressure out of service | Kn | 1000 | |
| Max. wheel pressure in service | Kn | 250 | |
| Steel track recommended | P50 | ||
| Installed capacity | kw | 450 | |
| Specification | 3055 | ||||
| Classification | A5 | ||||
| Lifting capacity | Load weight | t | Main hook | Aux. hook | |
| 30 | 10 | 5 | |||
| Radius | M | 15~17 | 15~50 | 19~55 | |
| Lifting height | m | 50 | 50 | ||
| Radius | Max. | m | 55 | 50 | |
| Min. | m | 19 | 15 | ||
| Mechanism speed | Hoisting speed | M/min | 10 ( 20, < 12t ) | 20 (40, <2t) | |
| Luffing speed | M/min | ~10 | |||
| Slewing speed | M/min | 0.24 | |||
| Traveling speed | M/min | 30 | |||
| Power supply | 3-Phase AC, 50Hz, 380V | ||||
| Track gauge/wheel base | m | 10.5, 12 | |||
| Portal headroom | m | ~10 | |||
| Tail slewing radius | m | -15 | |||
| Slewing platform tail radius | m | 12 | |||
| Max. wind pressure in service | Kn | 250 | |||
| Max. wind pressure out of service | Kn | 1000 | |||
| Max. wheel pressure in service | Kn | 250 | |||
| Steel track recommended | P50 | ||||
| Installed capacity | kw | 220 | |||
| Specification | 4073 | ||||||
| Classification | A4 | ||||||
| Lifting capacity | Load weight | t | 40 | 27 | 22 | 16 | 10 |
| Radius | M | 20~45 | 20~55 | 20~60 | 20~67 | 20~73 | |
| Lifting height | m | 45 | |||||
| Radius | Max. | m | 73 | ||||
| Min. | m | 20 | |||||
| Mechanism speed | Hoisting speed | M/min | 0.2~10 | ||||
| Luffing speed | M/min | 0.2~10 | |||||
| Slewing speed | M/min | 0.3 | |||||
| Traveling speed | M/min | 30 | |||||
| Power supply | 3-Phase AC, 50Hz, 380V | ||||||
| Track gauge/wheel base | m | 10.5/14 | |||||
| Portal headroom | m | 8.06 | |||||
| Slewing platform tail radius | m | ~9.4 | |||||
| Max. wind pressure in service | Kn | 250 | |||||
| Max. wind pressure out of service | Kn | 1000 | |||||
| Max. wheel pressure in service | Kn | 400 | |||||
| Steel track recommended | P50 | ||||||
| Installed capacity | kw | 350 | |||||
| Specification | 3055 | ||||
| Classification | A5 | ||||
| Lifting capacity | Load weight | t | Main hook | Aux. hook | |
| 120 | 40 | 5 | |||
| Radius | M | 24~33 | 24~60 | 28~65 | |
| Lifting height | m | 60 | 60 | ||
| Radius | Max. | m | 60 | 65 | |
| Min. | m | 24 | 28 | ||
| Mechanism speed | Hoisting speed | M/min | 6 (12,＜ 48t) | 15 (30,＜ 8t) | |
| Luffing speed | M/min | ~10 | |||
| Slewing speed | M/min | 0.24 | |||
| Traveling speed | M/min | 30 | |||
| Power supply | 3-Phase AC, 50Hz, 380V | ||||
| Track gauge/wheel base | m | 13/16 | |||
| Portal headroom | m | ~13 | |||
| Tail slewing radius | m | -17 | |||
| Slewing platform tail radius | m | ≤15 | |||
| Max. wind pressure in service | Kn | 250 | |||
| Max. wind pressure out of service | Kn | 1000 | |||
| Max. wheel pressure in service | Kn | 450 | |||
| Steel track recommended | Q50 | ||||
| Installed capacity | kw | 220 | |||
