Explosion Proof Crane, Suspended Girder

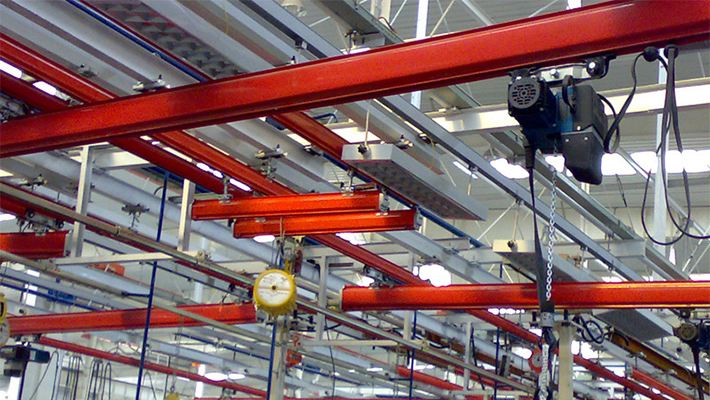

Browse Zhonggong website for the optimal bulk handling equipment that you need! The explosion proof crane shown on this page is a single girder suspension crane which travels along the bottom of runways, with its girder suspended. Carrying CD1 and MD1 electric hoists, this workstation crane is ideally applied to machining and assembly workshops, warehouses, etc. With compact and explosion proof design, the electric hoist crane can achieve fast and safe overhead handling in these areas.
| Span | S(m) | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 |
| Lifting height | m | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| Lifting speed | m/min | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Trolley speed | m/min | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Crane speed | m/min | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Lifting motor | kW | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Trolley motor | kW | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Total weight | t | 1.93 | 2.25 | 2.64 | 3.27 | 4.14 | 5.36 | 6.17 | 8.59 |
| Max Wheel Load | KN | 18.9 | 20.2 | 21.5 | 23.2 | 25.5 | 28.7 | 30.8 | 36.9 |
| Track | P24 | P24 | P24 | P24 | P24 | P24 | P24 | P24 | |
| Main dimension | mm | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 |
| Rail top to main top | H1 | 530 | 530 | 580 | 660 | 745 | 820 | 875 | 925 |
| Rail top to hook centre | H2 | 1255 | 1255 | 1255 | 1275 | 1290 | 1315 | 1360 | 1660 |
| Wheel base | W | 2000 | 2000 | 2000 | 2500 | 2500 | 3000 | 3500 | 4000 |
| Crane width | B | 2500 | 2500 | 2500 | 3000 | 3000 | 3500 | 4000 | 4500 |
| Hook left limitation | S1 | 820 | 820 | 820 | 820 | 820 | 820 | 820 | 820 |
| Hook right limitation | S2 | 1290 | 1290 | 1290 | 1290 | 1290 | 1290 | 1290 | 1290 |
| Main girder height | H3 | 650 | 650 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
