Jib Crane
Our BZD type jib crane is a light and medium duty crane. Its rated lifting capacity comes in 0.25t, 0.5t, 1t, 2t, 3t and 5t, and the maximum lifting height is 4m. The slewing jib crane has two methods of operation, i.e. electric slewing and manual slewing. Jib slewing angle is available in 180°, 270°, 345°, 360° and more.

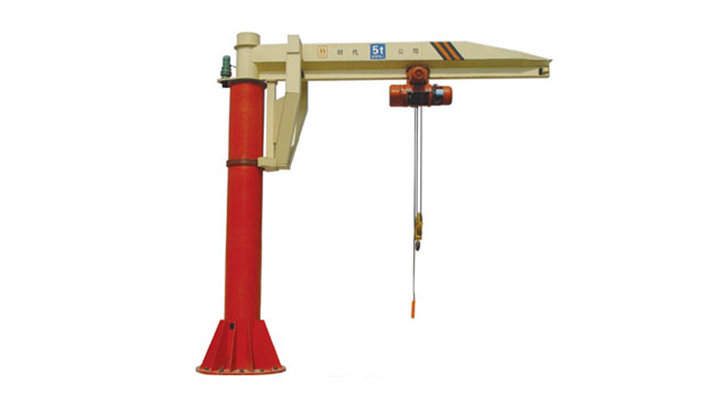

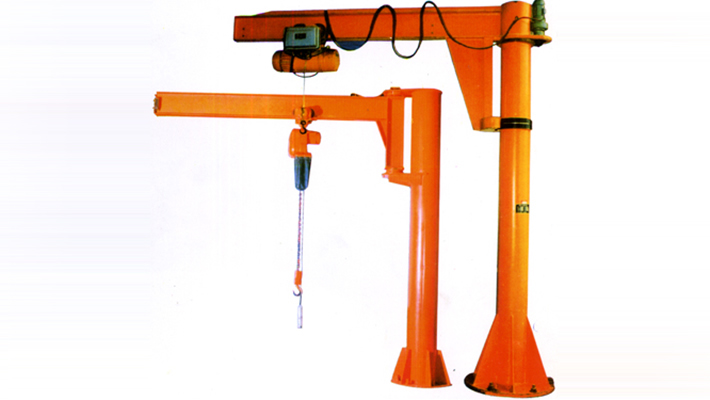

This crane for automotive manufacturing is composed of upright column, slewing jib, drive unit and electric hoist. The hoist can be electric chain hoist or CD/MD wire rope hoist. The shipbuilding crane features simple structure, easy operation, small space usage and large job area. It has been widely used in production lines, assembly lines, warehouses, ports, labs, etc. in machine manufacturing, automobile, shipbuilding and other modern industries for material handling.
Feel free to contact us if you want this material handling solution to improve working efficiency and labor condition.

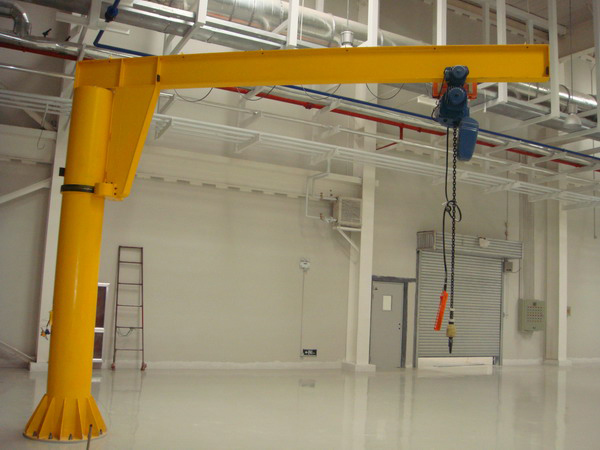

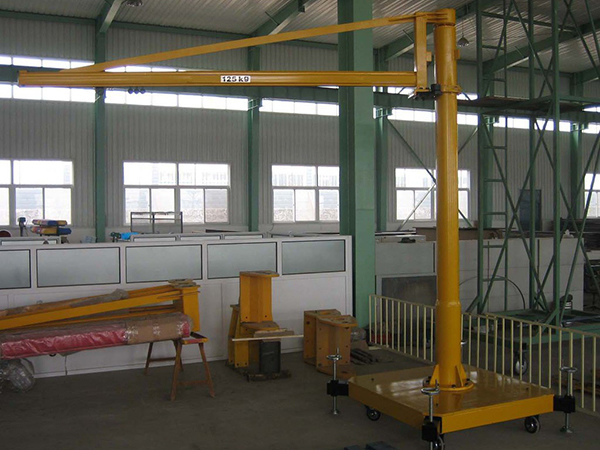

Other Images
| Model | ||||||||
| Lifting capacity | t | 0.25 | 0.5 | 1 | 2 | 3 | 5 | |
| Lifting height | mm | 3000 | 3000 | 3000 | 3000 | 4000 | 4000 | |
| Slewing radius R | mm | 3000 | 3000 | 3000 | 3000 | 4000 | 4000 | |
| Slewing radius R1 | mm | 950 | 1070 | 1100 | 1120 | 1160 | 1000 | |
| Slewing angle | degree | 360 | 360 | 360 | 360 | 360 | 360 | |
| Hoisting speed | m/min | Normal | 4;10;8 | 5;10;8 | 5;8 | 4;8 | 8 | 8 |
| Slow | 1;2.5;0.8 | 1.25;2.5 | 1.25;2;0.8 | 1;0.8 | 0.8 | 0.8 | ||
| Crane height (H) | mm | 3650 | 3900 | 4100 | 4230 | 5500 | 5750 | |
| Crane width (L) | mm | 3340 | 3363 | 3400 | 3415 | 4450 | 4600 | |
| Traveling speed | Normal speed | 14;20 | 14;20 | 14;20 | 14;20 | 20 | 20 | |
| Slewing speed | r /min | 1.0 | 0.8 | 0.7 | 0.7 | 0.9 | 0.6 | |
| Dead weight | KG | 950 | 1100 | 1800 | 2100 | 3500 | 4500 | |
