Semi Goliath Crane

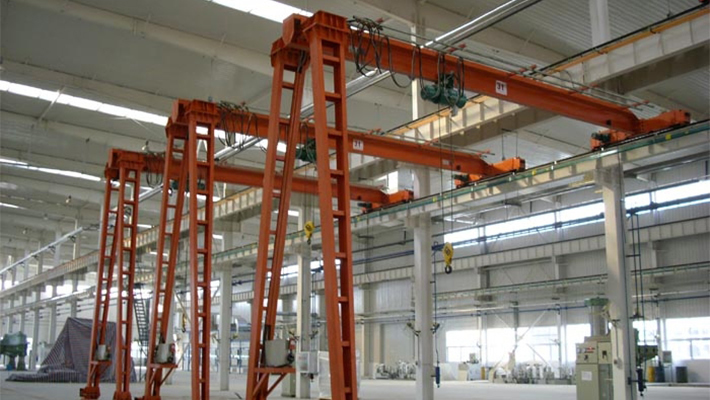

Holding enormous expertise and know-how in material handling equipment manufacturing industry, Zhonggong is well known as the leading manufacturer and supplier of semi goliath crane in China. Our BMH semi goliath crane used with CD and MD type electric hoists is a light duty crane, and it comes with a lifting capacity of 2-10t and a span of 10-20m. This enables it to be a perfect alternative wherever the installation of bridge cranes is impractical. Specifically, this workstation crane is commonly used to handle materials in outdoor spaces or warehouses.

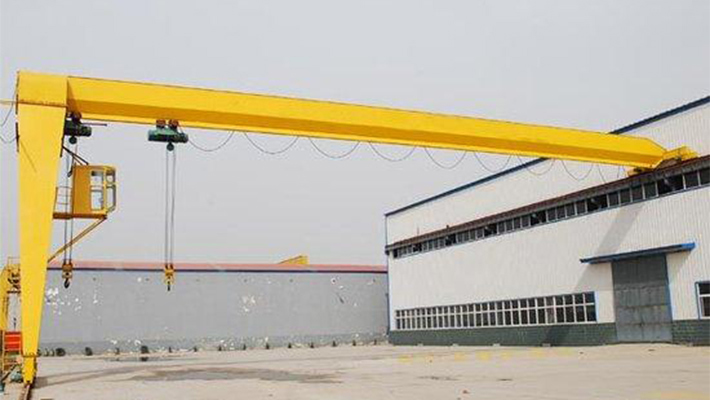

Our semi goliath crane provides two operation methods, namely remote or pendant control on ground and control in driver cabin. The crane for waste management can maximize your space utilization with one leg end moving over the floor on wheels, while the other end running overhead on a wall-mounted beam.
Technical Parameters of Semi Goliath Crane| Lifting capacity | t | 2 | 5 | 10 | |||||||||||
| Span | m | 10 | 12 | 16 | 20 | 10 | 12 | 16 | 20 | 10 | 12 | 16 | 20 | ||
| Lifting height | m | 6 | 6/9 | 9 | |||||||||||
| Travel mechanism | Speed | Pendant/remote control | M/min | 20 | 20 | 20 | |||||||||
| Cabin control | 20 | 30 | 20 | 30 | 30 | 40 | |||||||||
| Motor | Pendant/remote control | ZDY(D)21-4/0.8× 2 | ZDY(D)22-4/1.5× 2 | ZDY(D)21-4/0.8× 2 | YZR132M1-6/2.5× 2 | YZR132M1-6/2.5× 2 | YZR132M2-6/4× 2 | ||||||||
| Cabin control | ZDR100-4(D)1.5 × 2 | ZDR100-4(D)1.5× 2 | |||||||||||||
| Reducer | LD | LD | ZSC400 | ZSC400 | |||||||||||
| Wheel diameter | mm | Φ270 | Φ270 | Φ 40 0 | Φ 40 0 | ||||||||||
| Electric hoist | Model | CD1 | MD1 | CD1 | MD1 | CD1 | MD1 | ||||||||
| Hoisting speed | M/min | 8 | 0.8/8 | 8 | 0.8/8 | 7 | 0.7/7 | ||||||||
| Travel speed | M/min | 20 | 20 | 20 | |||||||||||
| Motor | Hoisting | ZD131-4/3 | ZDS0.4/3 | ZD 41 -4/ 7.5 | ZDS0. 8 / 7.5 | ZDS 51-4/13 | ZDS 1.5/13 | ||||||||
| Travel | ZDY12-4/0.4 | ZDY 21 -4/0. 8 | ZDY 21 - 4/ 0. 8× 2 | ||||||||||||
| Classification | A5 | A5 | A5 | ||||||||||||
| Steel rail | P24 | P24 | P24 | ||||||||||||
| Power supply | 3-Phase 380V 50HZ | 3-Phase 380V 50HZ | 3-Phase 380V 50HZ | ||||||||||||
| Crane weight | Pendant/remote control | t | 3300 | 4600 | 7600 | 11600 | 5000/7800 | 6600/8800 | 13200/15700 | 17500/21500 | 12500 | 15600 | 19000 | 23000 | |
| Cabin control | t | 3800 | 5100 | 8100 | 12100 | 6100/8300 | 7100/9300 | 13700/16200 | 18000/22000 | 13200 | 16200 | 19700 | 23700 | ||
| Max. wheel pressure | KN | 14 | 19 | 27 | 35 | 37/44 | 43/50 | 46/53 | 78 | 85 | 94 | 103 | |||
| Dimensions | H1 | 840 | 1129 | 1350 | |||||||||||
| H2 | 55 | 595 | 700 | 900 | 720 | 800 | 900 | 1100 | 900 | 1000 | 1200 | 1250 | |||
| B | 4010 | 4100/5170 | 4840/5890 | 6100 | |||||||||||
| B1 | 3810 | 3910/4970 | 3890/4930 | 5130 | |||||||||||
| B2 | 1500 | 1500 | 1500 | 1600 | |||||||||||
| B3 | 2000 | 2000 | 2000 | 2500 | |||||||||||
