Double Girder Gantry Crane

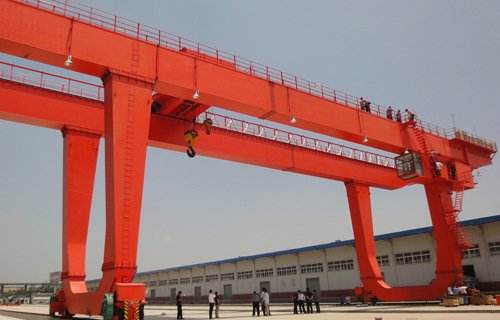

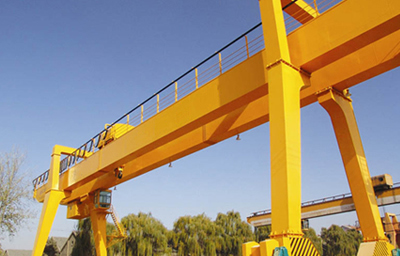

The double girder gantry crane from Zhonggong has been extensively used for materials handling in outdoor warehouses, storage yards, railway freight depots, shipyards, ports, etc. It can be equipped with special lifting tools for special lifting works. For instance, the double girder crane can use hooks and grab buckets to realize handling of different materials.

This shipbuilding gantry crane mainly consists of girder, cabin, legs, crane travel mechanism, trolley hoist and electrical equipment. It comes with outstanding robustness due to welded box girder and stable movement due to separate drive of crane travel mechanism. All operations of the port crane are completed in the driver cabin.

Technical Parameters
1. Double Girder Gantry Crane with Hook (5-20t and 50-100t capacity)
Lifting capacity T 5 10 16/3.2 20/5
Classification A5
Span M 18 22 26 30 35 18 22 26 30 35 18 22 26 30 35 18 22 26 30 35
Lifting height Main hook H1(m) 10 11 10 11 10 11 10 11
Aux. hook 10.725 11.725 10.446 11.446
Speed Lifting Main hook H2(m) 9.3 8.5 7.9 7.2
Aux. hook 16.7 12.6
Crane travel M/min 38.3 43.8 44.6
Trolley travel 40.1 57.1 40.1 47.1 34.5 47.1 34.5
Motor power kw 40.8 51.8 41.5 52.8 80 77 84 81
Main dimensions H 13663 14763 13663 14763 14567 15667 14526 15626
H3 9669 10469 10269 10200 10100 10600 10244 10044 9944 10544 10544 10203 10003 9903 10703 10503
L1 6450 7450 8450 9450 6745 7745 8745 9745 7570 8570 9570 10570 7260 8260 9260 10260
L2 6580 7580 8580 9580 6625 7625 8625 9625 7180 8180 9180 10180 7213 8213 9213 10213
L3 7700 8700 9100 10700 7995 8995 9995 10995 8820 9820 10820 11820 8510 9510 10510 11510
S1 5000 6000 7000 8000 5000 6000 7000 8000 5000 6000 7000 8000 5000 6000 7000 8000
S2
S3 5810 6810 7810 8810 5870 6870 7870 8870
S4 4190 5190 6190 7190 4130 5130 6130 7130
B 9583 10779 9583 10779 9779 11245 9779 11245
Ba 8000 9000 8000 9000 8000 9000 8000 9000
Max. wheel pressure KN 154 159 178 199 223 198 219 241 275 301 320 341 186 195 227 349 344 201 228 244
Total weight t 44.8 46.8 54.6 63 72.9 46.9 55.8 64 78 89.7 75.9 84.8 97 117.2 131.8 76.6 86.5 97.7 119.8 134.5
Steel rail 43kg /m
Power supply 3-Phase 50HZ 380V
Lifting capacity Main hook t 50 75 100
Aux. hook 10 20 20
Span m 30 35 40 16
Lifting height Main hook Above rail: 15 Max. 22 22 16
Aux. hook Above rail: 15.9 Max. 24 22 17.5
Working duty A5
Speed Lifting Main hook M/min 7.68 6.25 4.62
Aux. hook 19.8 9.28 9.28
Crane travel 38.6 38.9 13.1
Trolley travel 42.7 38.9 17.8
Motor Lifting Main hook Model YZR315S-10/63 YZR315M-10/85 YZR315M-10/85
Aux. hook YZR250M-8/35 YZR250M1-8/35 YZR250M1-8/35
Crane travel YZR160M2-6/7.5 YZR180L-8/11 YZR160M1-6/6.3
Trolley travel YZR225M-8/22× 2 YZR160L-6/11× 4 YZR132M2-6/4× 4
Weight Trolley t 18.3 24.99 29.81
Total weight 135 154 232 173
Max. wheel pressure 38 40 56 30
Steel rail QU80
Power supply 3-Phase 50HZ 380V
2. Double Girder Gantry Crane with Grab Bucket (5-50t Capacity)
1) 5t Capacity
Lifting capacity Span Heavy-class working duty Main dimensions Grab Bucket Crane rail model
Lifting height Speed Motor Weight Max. wheel pressure Ba Bx B H L1 L2 L3 H1 H2 H3 H4 H5 h h1 S1 S2 a L b m3 t/m3 43kg /m
s Lifting Trolley travel Crane travel Lifting Trolley travel Crane travel Trolley Total weight
T M M/min Model t KN mm
5 18 Above rail 10m; Under rail 10m 37.80/37.08 49.4 46.9 YZR255M-8/22× 2 YZR160M1-6/5.5 YZR160L-6/11× 2 13.8 86 301.3 9500 2940 11388 17200 7700 9300 10680 14200 760 12977 1000 12662 4200 6500 5000 2500 1544 2340 1126 0.75 2.5-3.3
22 96.8 346.0 9700 10300 11680 13677 13362 7000 3500 1531 2600 1152 1 2-3
26 100 352.0 1381 2600 1452 1.5 1-1.9
30 34.5 121.3 222.0
35 126.3 229.0 8000 12388 17240 11700 11800 13180 880 13277 12662 9000 5000 1181 3000 1852 3 0.8-1.0
2) 10T Capacity
Lifting capacity Span Heavy-class working duty Main dimensions Grab Bucket Crane rail model
Lifting height Speed Motor Weight Max. wheel pressure Ba Bx B H L1 L2 L3 H1 H2 H3 H4 H5 h h1 S1 S2 a L b m3 t/m3 43kg /m
s Lifting Trolley travel Crane travel Lifting Trolley travel Crane travel Trolley Total weight
T M M/min Model t KN mm
10 18 Above rail 10m; Under rail 10m 40.92/40.92 46.9 46.9 YZR280M-10/45 YZR160M1-6/5.5 YZR160L-6/11× 2 17.7 116 366.0 9500 3190 11388 18000 7700 9300 10680 15000 760 13577 1000 13262 5000 6470 5000 2500 1502 3200 1460 2 2-3
22 39.7 142 223.0 9700 10450 11830 13277 13062 7000 3500 1500 3520 1504 2 2.7
26 146 227.0 18040 1252 3200 1960 3 1-2
30 34.5 161 258.0
35 167 266.0 8000 12388 18080 11700 11950 13180 880 12977 13262 9000 5000 1104 3700 2256 6 0.8-1.0

Note
Crane Main Dimensions:
Ba- Crane wheel span
Bx-Trolley wheel span
B- Width
H- Max. Height
L1- Left arm length
L2- Right arm height
L3- Conductor frame outer size
H1- Distance between crane rail to trolley rail
H2- Buffer height
H3- Distance from the crane rail to the bottom of girder
H4- Distance from the crane rail to the bottom of grab
H5- Distance from the trolley rail to the bottom of grab
h- Max. height of grab bucket trolley
h1- Max. height of grab bucket trolley
S1- Extreme dimension
S2- Extreme dimension

Grab Bucket
a- Distance from grab to cabin
L- Length after opening
b- Width
m3- Volume
t/m3- Unit weight

3) 10-50t Capacity
Lifting capacity Span Dimensions (mm)
Lx BQ Bx B H H1 H2 H3 H4 L1 L2 S1 S2
10 18 7000 9150 2100 11240 14438 12000 11500 -- 9400 8750 8750 6500 6500
22 14499 12050
26 9228 12528 14738 12300 9750 9750 7500 7500
30 8500 11990 14688 12250 10500 10500 8000 8000
16 18 7000 9500 2600 10820 14555 1200012100 10500 -- 8400 8000 8000 5500 5500
22 14655 13250 9000 9000 6500 6500
26 8500 11980 15810 12000 12000 11000 9500 9500 7500 7500
20/10 18 7000 9500 2600 11550 14555 12100 11000 10500 9400 8000 8000 5500 5500
22 14655 12000 9000 9000 6500 6500
26 8500 11990 14547 12622 9500 9500 7500 7500
30 11748 15181 12800
35 15358 12800
30/10 22 7000 8500 2600 11748 16003 13200 12000 11500 10000 9500 9500 7000 7000
26
36/16 26 7000 8500 2600 11042 16270 13300 12000 11500 11000 10500 10500 7500 7500
30
50/10 32 7000 8500 3100 12918 14200 13000 12000 11260 14000 14000 11000 11000
