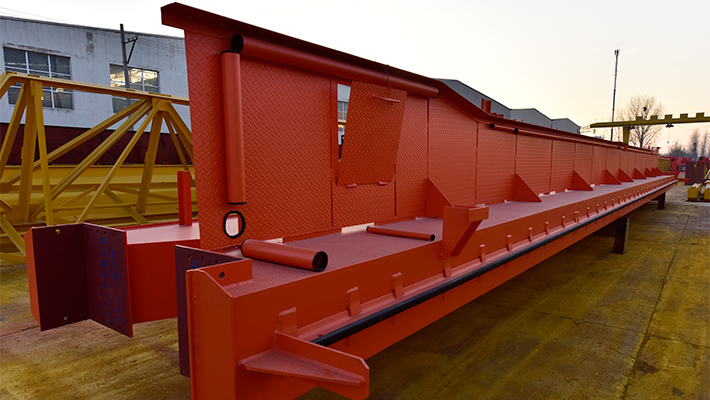

Double Girder Bridge Crane, European Standard

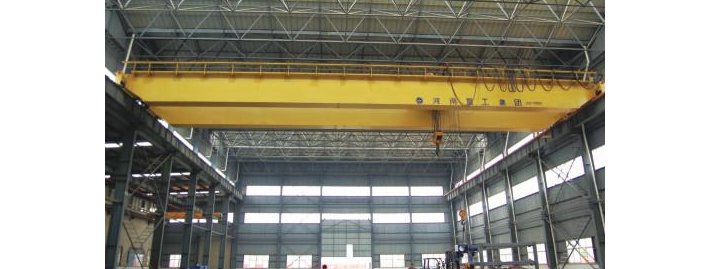

As energy-efficient construction crane, our European standard double girder bridge, also called twin girder bridge crane is available in 5t, 10t, 16t and 20t capacities. Based on customers' demands, it can be equipped with an electric wire rope hoist in a load capacity range of 2000kg~80,000kg. Currently, this workstation bridge crane is widely used in large scale machining workshops, warehouses and other industrial environment for heavy load lifting and handling applications.

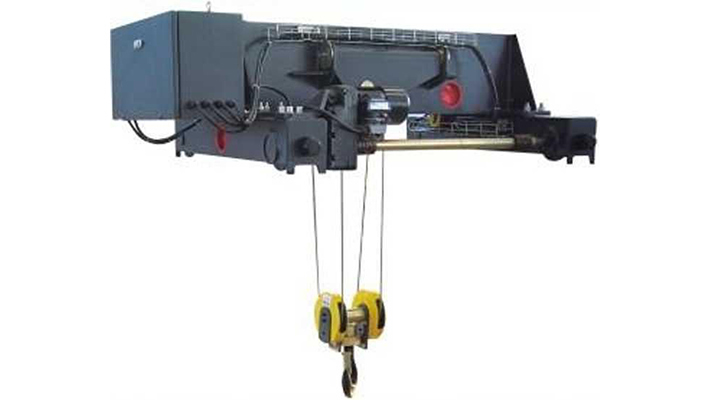

Electric Hoist Specifications
Max. lifting capacity (kg) Classification FEM Classification ISO Lifting height (m) Lifting speed (M/min) Trolley travel speed (M/min) H Size (mm) C Size (mm)
2000 3M M6 6/9/12 /18 0.8/5.0 5 -20 463 350
3200 2M M5 6/9/12 /18 0.8/5.0 5 -20 463 350
5000 2M M5 6/9/12 /18 0.8/5.0 5 -20 463 350
6300 1AM M4 6/9/12 /18 0.8/5.0 5 -20 463 350
8000 3M M6 6/9/12 /18 0.8/5.0 5 -20 580 350
10,000 1AM M4 6/9/12 /18 1.0/6.3 5 -20 580 563
10,000 2M M5 6/9/12 /18 0.8/5.0 5 -20 580 563
10,000 3M M6 6/9/12 /18 0.66/4.0 5 -20 580 563
12,500 1AM M4 6/9/12 /18 0.8/5.0 5 -20 580 563
12,500 1AM M4 6/9/12 /18 1.0/6.3 5 -20 679 563
12,500 2M M5 6/9/12 /18 0.6/4.0 5 -20 679 700
16,000 2M M5 6/9/12 /18 0.66/4.0 5 -20 679 700
20,000 1AM M4 6/9/12 /18 0.66/4.0 5 -20 679 700
20,000 2 M M5 6/9/12 /18 0.53/3.4 5 -20 679 700
20,000 3 M M6 6/9/12 /18 0.8/3.3 5 -20 884 700
25,000 1AM M4 6/9/12 /18 1.0/4.2 5 -20 884 1000
25,000 3M M6 6/9/12 /18 0.8/3.3 5 -20 884 1000
25,000 2M M5 6/9/12 /18 0.8/5.0 5 -20 884 1000
32,000 2M M5 6/9/12 /18 0.8/5.0 5 -20 884 1000
32,000 2M M5 6/9/12 /18 0~4.9 5 -20 1023 1000
40,000 1AM M4 6/9/12 /18 0~4.9 5 -20 1023 950
50,000 2 M M5 6/9/12 /18 0~3.2 5 -20 1023 950
50,000 1AM M4 6/9/12 /18 0~4.1 5 -20 1023 950
63,000 1AM M4 6/9/12 /18 0~3.2 5 -20 1023 950
63,000 2M M5 6/9/12 /18 0~2.4 5 -20 1023 1100
80,000 1AM M4 6/9/12 /18 0~2.4 5 -20 1023 1100
Specifications of the Double Girder Bridge Crane
5t As FEM 2m H (m) 22 S H1 H2 H3 H4 H5 W B b Total weight (t) Wheel load (KN) Runway type Total power (kw)
V1 (m/ min) 10.5 10.5 1500 700 -150 250 1490 3150 260 135 4.7 43 38kg /m 13.56
V2 20 13.5 -150 5.4 44
V3 32 16.5 -50 6.9 48
L1 (mm) 560 19.5 50 4000 8.9 53
L2 960 22.5 150 10.6 57
C1 >80 25.5 250 5000 12.1 61
C2 > 300 28.5 350 14.1 66
31.5 500 17.6 74
10t As FEM 2m H (m) 22 S H1 H2 H3 H4 H5 W B b Total weight (t) Max wheel load (KN) Runway type Total power (kw)
V1 (m/ min) 3.5 10.5 1550 700 -150 250 1490 3150 260 135 4.9 69 38kg /m 14.5
V2 20 13.5 -100 6.6 73
V3 32 16.5 0 11.5 85
L1 (mm) 560 19.5 150 12.8 89
L2 960 22.5 250 4000 15.3 95
C1 >80 25.5 350 17.3 100
C2 >300 28.5 500 350 1590 5000 325 170 19 105
31.5 550 22.4 113
16t As FEM 2m H (m) 22 S H1 H2 H3 H4 H5 W B b Total weight (t) Max wheel load (KN) Runway type Total power (kw)
V1 (m/ min) 3.9 10.5 1600 750 -150 350 1650 3150 325 170 7.4 110 38kg /m 16.5
V2 20 13.5 -100 8.9 113
V3 32 16.5 0 11.1 119
L1 (mm) 560 19.5 150 4000 13.2 124
L2 960 22.5 150 450 1750 370 220 16.6 133
C1 >80 25.5 300 5000 19.7 140
C2 >300 28.5 400 21.6 148
31.5 500 24.6 154
20t As FEM 2m H (m) 22 S H1 H2 H3 H4 H5 W B b Total weight (t) Max wheel load (KN) Runway type Total power (kw)
V1 (m/ min) 3.8 10.5 1890 750 -150 350 1750 3150 325 170 8 130 38kg /m 20.9
V2 20 13.5 -50 9.5 134
V3 32 16.5 80 11.4 138
L1 (mm) 560 19.5 180 13.3 143
L2 960 22.5 230 450 1850 4000 370 220 16.9 152
C1 >80 25.5 230 20.1 160
C2 >300 28.5 480 5000 24.6 171
31.5 480 28.3 190
