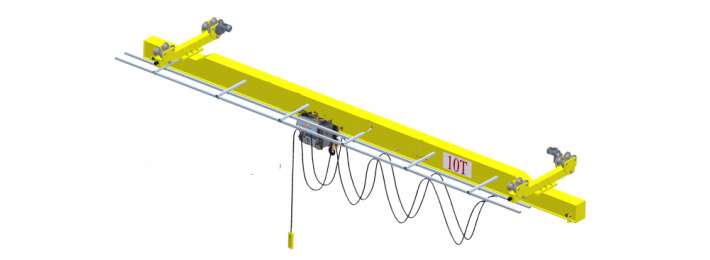

Single Girder Bridge Crane, European Standard

The single girder bridge crane made by Zhonggong to European standard is our new type energy-saving port crane. According to project needs, the bridge cranes for cement industry can be equipped with different electric hoists that come with various lifting capacities ranging from 1000kg to 20,000kg. In addition to that, the wire rope hoist crane offers a lifting height of 6-18m, the maximum span of 24m and lifting speed of 0.8~5m/min. It is ideal for handling materials of less than 20 tons.

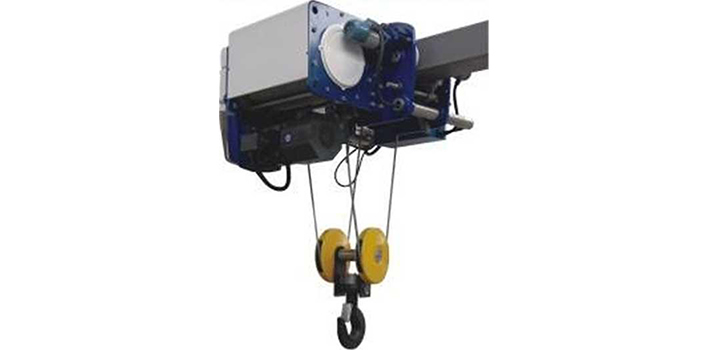

Electric Hoist Specifications
Max. lifting capacity (kg) FEM ISO Lifting height (m) Lifting speed (M/min) Trolley travel speed (M/min) H Size (mm) C Size (mm)
1000 4M M7 6/9/12 /18 0.8/5.0 5-20 232 500
1260 3M M6 6/9/12 /18 0.8/5.0 5-20 232 500
1600 3M M6 6/9/12 /18 0.8/5.0 5-20 232 500
1600 2M M5 6/9/12 /18 1.6/10 5-20 232 600
2000 2M M5 6/9/12 /18 0.8/5.0 5-20 232 600
2000 3M M6 6/9/12 /18 1.3/8.0 5-20 232 500
2500 3M M6 6/9/12 /18 0.8/5.0 5-20 232 500
2500 3M M6 6/9/12 /18 1.0/6.3 5-20 232 500
2500 2M M5 6/9/12 /18 1.3/8.0 5-20 232 500
3200 2M M5 6/9/12 /18 0.8/5.0 5-20 232 600
3200 2M M6 6/9/12 /18 1.0/6.3 5-20 232 600
3200 1AM M4 6/9/12 /18 1.6/10 5-20 232 590
5000 2M M6 6/9/12 /18 0.8/5.0 5-20 264 590
5000 3M M6 6/9/12 /18 1.0/6.3 5-20 264 740
5000 2M M5 6/9/12 /18 1.6/10 5-20 321 740
6300 1AM M4 6/9/12 /18 0.8/5.0 5-20 321 590
6300 4 M M7 6/9/12 /18 1.6/10 5-20 254 740
6300 2M M5 6/9/12 /18 0.8/5.0 5-20 321 740
8000 3M M6 6/9/12 /18 0.8/5.0 5-20 321 740
10,000 1 AM M4 6/9/12 /18 1.3/8.0 5-20 321 740
10,000 2M M 5 6/9/12 /18 0.8/5.0 5-20 321 740
10,000 3M M6 6/9/12 /18 0.66/4 .0 5-20 321 740
12,500 1AM M4 6/9/12 /18 0.8/5.0 5-20 321 740
12,500 2M M5 6/9/12 /18 0.6/4.0 5-20 321 740
12,500 1AM M4 6/9/12 /18 1.0/6.3 5-20 321 740
12,500 3 M M3 6/9/12 /18 0.6/4.0 5-20 411 850
16,000 2M M5 6/9/12 /18 0.6/4.0 5-20 411 850
20,000 1AM M4 6/9/12 /18 0.6/4.0 5-20 411 850
Single Girder Bridge Crane Specifications
Lifting capacity (t) Span (m) Lifting height (m) Classification Lifting speed (m/min) Weight Runways Total power ( kw ) Max. wheel pressure ( Mpa ) H (mm) h (mm) A (mm) W (mm) B (mm)
Trolley (kg) Whole crane (kg)
1 9.5 6 9 12 15 18 A5 (2m) 0.8/5 376 958 P24 4.58 8.76 710 260 183 1500 1928
11 1599 9.51
12.5 1723 10.45
16 2220 11.58 693 447 2000 2428
19.5 2835 13.06 570 497 2500 2928
22.5 3532 14.62 652 497 3000 3764
24 3774 16.1 652 508
2 9.5 6 9 12 15 18 A5 (2m) 0.8/5 376 1625 P24 4.94 13.5 755 260 183 1500 1928
11 1784 14.46
12.5 1970 15.54
16 2371 17.47 575 447 2000 2428
19.5 3175 18.93 655 497 2500 2928
22.5 3726 20.39 735 497 3000 3764
24 4016 22.38 735 508
3 9.5 6 9 12 15 18 A5 (2m) 0.8/5 376 1902 P24 4.94 18.98 755 260 183 1500 1928
11 2168 20.93
12.5 2350 22.38
16 2872 18.89 575 452 2000 2428
19.5 3854 20.11 655 492 2500 2928
22.5 4549 21.85 735 512 3000 3764
24 4855 23.51 735 541
5 9.5 6 9 12 15 18 A5 (2m) 0.8/5 531 2318 P24 7.75 25.45 666 505 183 1700 2674
11 2566 27.06 565
12.5 2816 30.6 666 665
16 3673 29.2 776 665 2000 2500
19.5 4364 29.76 776 665 2500 3000
22.5 5392 31.6 896 665 3000 3500
24 5754 33.84 946 665
10 9.5 6 9 12 15 18 A5 (2m) 0.8/5 928 3260 P38 12.7 35.62 666 762 183 1700 2238
11 3596 39.78 842
12.5 3896 42.62 892
16 4889 51.85 666 876 2000 2538
19.5 5913 54.44 776 976 2500 3038
22.5 7527 57.7 776 1006 3000 3538
24 7975 60.83 896 1006
16 9.5 6 9 12 15 18 A5 (2m) 0.8/5 1420 4284 P43 20.92 64 820 862 183 1700 2238
11 4846 67.26 912
12.5 5336 71.36 982
16 6305 83.1 980 990 2000 2538
19.5 8111 86.1 1040 1080 2500 3038
22.5 9416 88.5 1100 1100 3000 3538
24 10065 93 1175 1100
20 9.5 6 9 12 15 18 A5 (2m) 0.8/5 1420 4944 P43 20.92 98.4 870 862 183 1800 2238
11 5441 102.3 912
12.5 5906 104.2 982
16 6756 101.1 1025 990 2000 2538
19.5 8307 105.3 1135 1080 2500 3038
20 8500 107.1 1260 1100 3000 3538
